Stone Square led panel 40w ip20

The Stone LED Panel Square 40W IP20 is a lighting fixture designed for installation in indoor environments, such as offices, schools, hospitals, shops, and other spaces where uniform and high-quality lighting is required. This LED panel combines an elegant and modern design with energy efficiency and a long operating life, making it ideal for replacing traditional fluorescent lights.

Main features:

• Brand: Stone
• Product type: Square LED panel
• Power: 40W

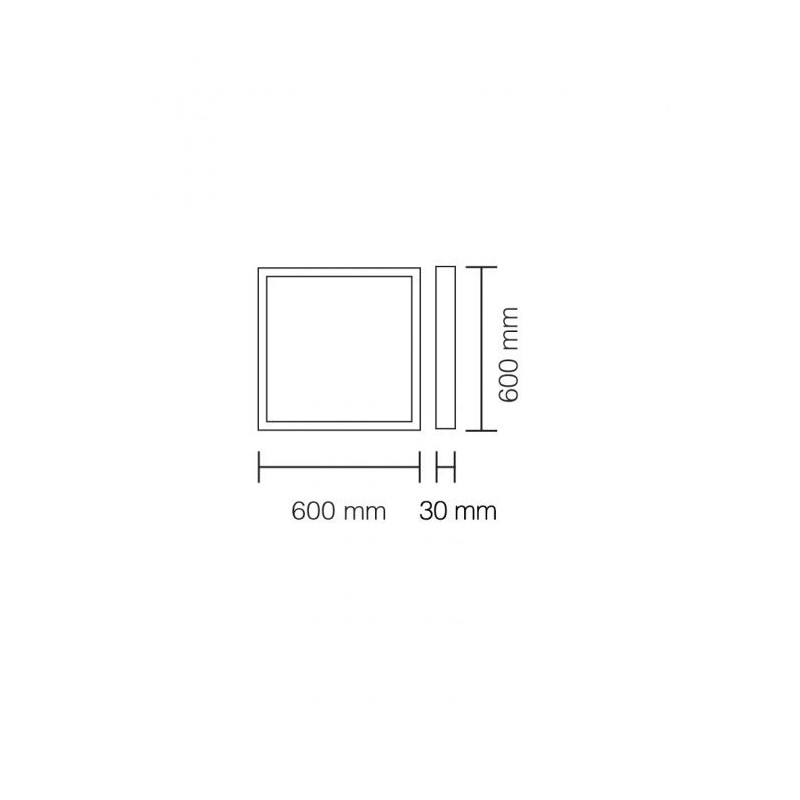

• Dimensions: 596 x 30 x 596 mm (standard for insertion in modular false ceilings)
• Luminous flux: 4000 lumens (high brightness for uniform illumination)
• Selectable color temperatures: 3200K (warm white), 4000K (neutral white), 6500K (cold white)
• Degree of protection: IP20 (protected against the ingress of solid objects greater than 12 mm, not protected against humidity)
• Autonomy: Up to 70,000 hours (long life)
• Beam angle: 120° (wide light spread)
• Power factor: PF 0.9 (high energy efficiency)
• Color Rendering Index (CRI): >80 (good color rendering)

Technical specifications:

• Dimensions: 596mm x 596mm (standard ceiling square) with a depth of 30mm.
• Power: 40W, with a luminous flux of 4000 lumens, equivalent to intense and uniform light.
• Color temperatures:
  • 3200K: Warm white, ideal for relaxing environments.
  • 4000K: Neutral white, perfect for work spaces.
  • 6500K: Cool white, suitable for areas where bright, stimulating light is needed.
• Degree of protection: IP20, suitable for dry indoor environments only.
• Lamp life: Up to 70,000 hours, ensuring long operating life without the need for frequent replacement.
• Beam angle: 120° for uniform and wide illumination.
• Power factor: 0.9, indicates high energy efficiency of the panel.
• Color Rendering Index (CRI): Higher than 80, which ensures good color representation under the panel light.

Functionality:

• Energy efficiency: Reduced consumption thanks to LED technology, which offers a sustainable and economical lighting solution.
• Uniform Illumination: The LED panel provides diffused, uniform and shadow-free light, ideal for work environments or public areas.
• Color Temperature Versatility: Allows you to choose between different color temperatures to adapt the lighting to your specific environment and needs.
• Modern and slim design: Easily integrated into modular or false ceilings, thanks to the standard dimensions.

Usage:

• Indoor Applications: Suitable for offices, meeting rooms, classrooms, shops, hospitals, corridors, and other indoor areas requiring uniform and quality lighting.
• General lighting: Ideal for providing wide and uniform lighting in any space, reducing dark spots and improving visual comfort.

Advantages:

• High luminous efficiency: The luminous flux of 4000 lumens with a consumption of only 40W offers intense illumination with low energy consumption.
• Long Life: A service life of up to 70,000 hours reduces maintenance and replacement costs.
• Good Color Rendering: A CRI above 80 ensures that colors appear natural and vivid under the light of the panel.

Notes:

• Installation: Designed for easy insertion into modular ceilings; may require professional assistance for proper installation and electrical connection.
• Indoor use only: The IP20 protection rating makes this panel suitable only for dry indoor environments, away from humidity and splashes of water.
• Dimmer compatibility: Check the compatibility of the LED panel with any dimming systems.
