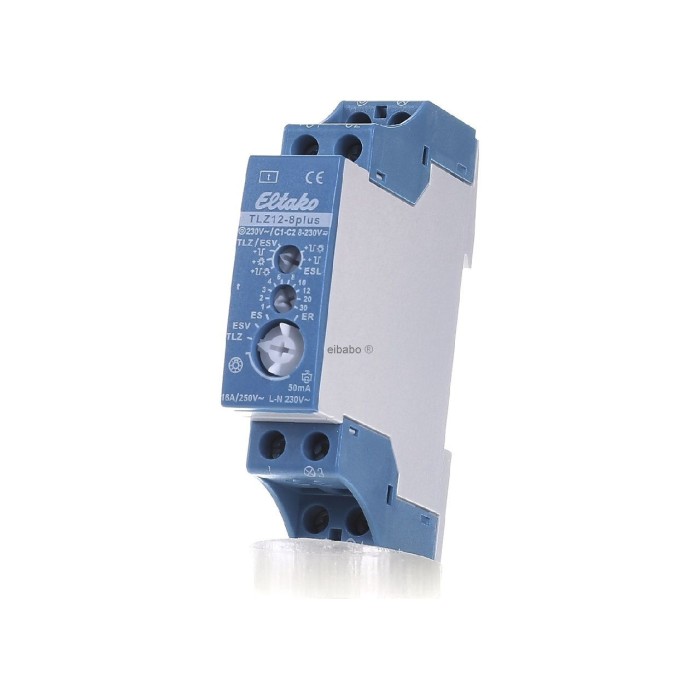

Tlz12-8plus multifunctional stair light timer

The Eltako TLZ12-8PLUS stair light timer is an electronic device designed to manage the timed switching on and off of stair lights or other common areas. This timer is particularly useful for saving energy, controlling the lighting only when necessary.

Main features:

• Brand: Eltako
• Model: TLZ12-8PLUS
• Material: Plastic
• Weight: 80 grams
• Voltage: 250V AC
• Maximum Power: Supports bulbs up to 2300W, energy saving lamps (ESL) and LEDs up to 200W.
• Energy efficiency: Class A
• Mounting type: DIN rail (DIN EN 60715 TH35)
• Width in division units: 1 unit (18 mm)
• Mounting depth: 58 mm
• Number of locking devices: 1

Functionality:

• Electronic control with off warning: Provides a warning signal before the light goes out.
• Activateable light duration button: Allows you to manually extend the lighting period.
• Standby loss: Only 0.7 Watt, very low power consumption when not in use.
• ESL Optimization: Designed to extend the life of energy saving lamps.
• Bistable Relay: Reduces power loss and heat buildup even when the device is active, improving energy efficiency.

Technical description:

• Switch type: Push button
• Certification: Complies with safety and quality standards (EN 60715)
• Voltage control: Operational at 230 V AC and/or 8-230 V UC
• Zero contact for contact and lamp preservation: Extends lamp life through optimized voltage control.

Usage:

The TLZ12-8PLUS is ideal for installation on lighting systems in stairwells, corridors or other common areas that require timed control of lights. DIN rail installation makes it suitable for electrical panels and distribution systems.

Advantages:

• Energy saving: Reduces energy consumption with time control and standby efficiency.
• Extended lamp life: Optimizes the use of energy-saving lamps and LEDs.
• Easy installation: DIN rail mounting, compatible with most electrical panels.

Additional Notes:

• Switch and Dimmer: It does not have a built-in dimmer switch, so it is designed for timed on/off control.
• Indoor use: Protection class IP20, suitable for dry indoor environments only.
