Dir-202024 disoric wrb 130 s-1.5-1.0

Technical Description of Fiber Optic Sensor

Product Name: Fiber Optic Sensor

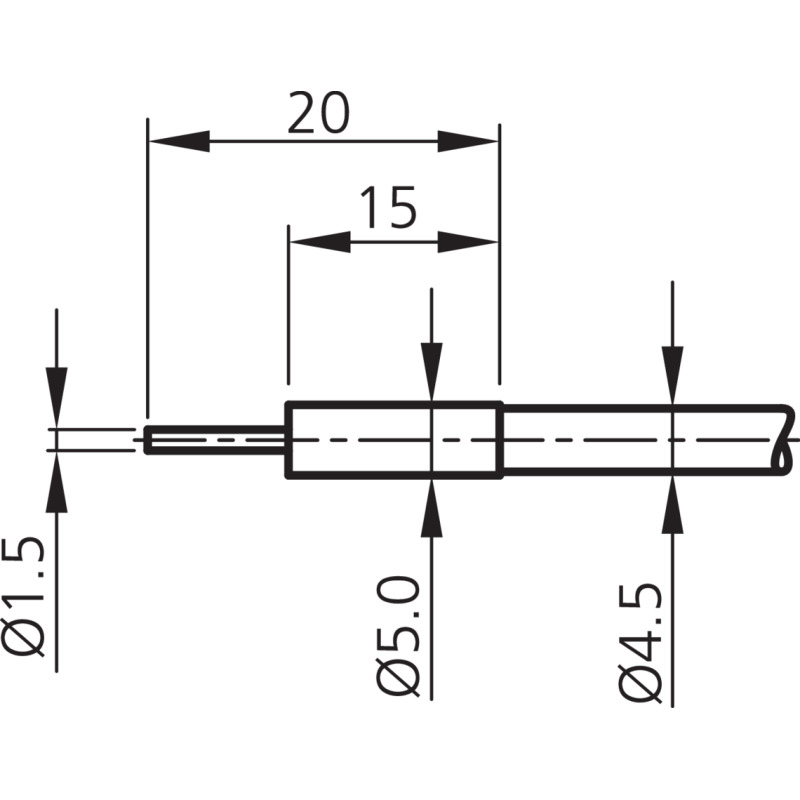

General Features:

• Total length: 1,000 mm
• Fiber Bundle Diameter: Ø 1.0 mm
• Housing Length: 15mm
• Light Opening: Axial
• Mounting diameter: Ø 5 mm
• Minimum Bending Radius: > 3 x Ø of the tube
• Fiber Material: Fiberglass
• Housing Material:
  • Stainless steel (sensor probe)
  • Silicone-metallic sleeve (coating)

Optical Features:

• Working Principle: Diffuse Sensor
• Design: Cylindrical
• Single Fiber: Ø 0.05 mm
• Opening Angle: 67°
• Detection Range / Measurement Interval: 20 mm

Environmental Conditions:

• Temperature Resistance:
  • Operational: -40°C to +180°C
  • Temporarily up to +250°C
• Protection type: IP 67 (protected against dust and temporary immersion in water)

Applications:

• Usage: Suitable for glass fiber optic amplifiers

General Description:

This fiber optic sensor is designed for precise and reliable sensing applications using diffuse sensor technology. With a Ø 1.0 mm fiber bundle and a Ø 5 mm mounting diameter, it is compact and versatile. The stainless steel probe and silicone-metal jacket ensure durability and resistance in harsh operating environments.

The sensor offers a wide thermal resistance, operating in a temperature range of -40°C to +180°C and withstanding temporary conditions up to +250°C. The IP 67 protection makes it dust and water resistant, adapting to harsh environmental conditions.

With an opening angle of 67° and a detection range of 20 mm, it is particularly suitable for applications requiring precision in measurement and monitoring. The glass fiber used ensures high-quality optical transmission, making it ideal for use with fiber optic amplifiers.

This sensor is an excellent choice for industrial and automation applications that require accurate and reliable detection in extreme environments.
