Intellymodem GPRS + pre-wired display
Stucchi AAG Lamp holders 264

Intelly modem gprs + display

€344.65
Tax included
4-NOKS S.R.L.
IM-KIT
New
1 Item
Last items in stock
Quantity
Add to Wishlist

This product can be bought with COD
Home , Latest arrivals
  • Security policies
    Security policies
  • Shipping Policies
    Shipping Policies

Product Description

4-noks is able to offer its customersmonitoring and data collection devices, like theIntellyModem 2.0 advanced data loggerSpecifically designed for the photovoltaic sector, based on technology with extremely high added value.



To achieve maximum efficiency, the parameters relating to the production of photovoltaic systems must be constantly monitored. Thanks to the advanced data loggers produced by 4-noks, it is possible to install a stand-alone system that interfaces directly with the meterCapable ofmonitor power and energy produced by photovoltaicand reduce, thanks to the servicewww.4-cloud.org,The possibility of non-productionCaused by faults and check the trend over time to identify any problems.



Our data loggers combined with the monitoring portal for the photovoltaic sector are continuously updated remotely and the recorded data can be viewed via Web browser from a PC or smart device, thus ensuring maximum efficiency and ease of use.

How it works

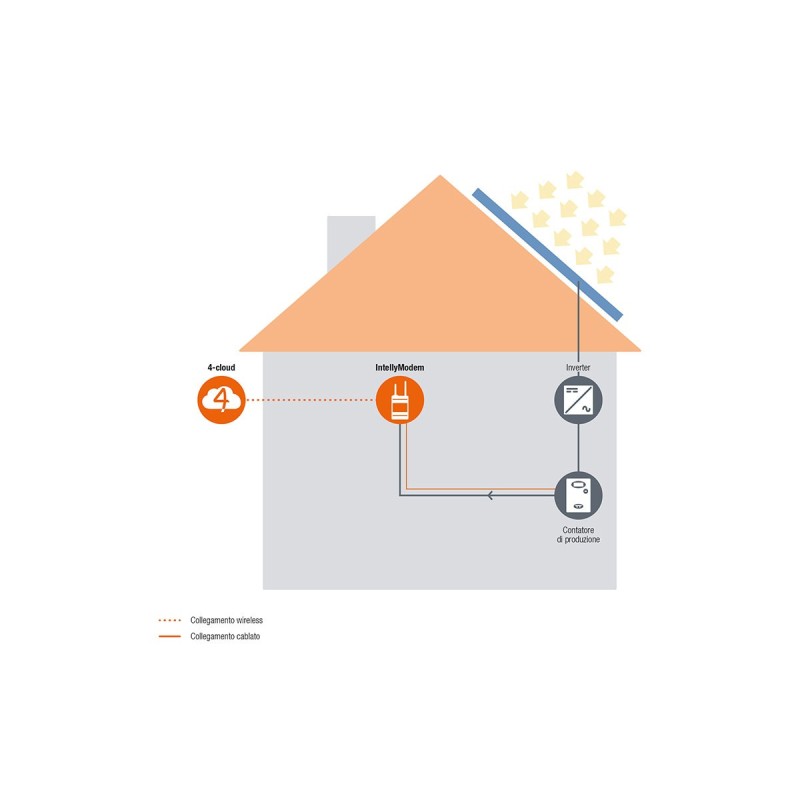

Intelly Modem 2.0 is the solution for the control andRemote management of the energy produced by the photovoltaic system. The device detects power and energy information.directly from the electricity meterProduction via a dedicated optical interface or an S0 input.

The device is equipped with a clean contact alarm input that can be used to send notifications in the event of system anomalies.

Intelly Modem 2.0 autonomously sends the acquired data to the 4-cloud web monitoring portal via SIM for GPRS connection (can be provided on request by Astrel Group).

The collected data can be analyzed and downloaded from the 4-cloud web portal.

Main features

  • Remote monitoring of plant production via4-cloud web portal
  • Compatible with all energy meters regardless of the system power
  • Autonomous transmission to the 4-cloud web portal with GPRS data SIM
  • Data collection and graphical display of power and energy produced via web portal
  • Auxiliary input for external alarms (e.g. inverter alarm output, magnetothermal aux contact)
  • Reading parameter configuration via PC software (free)
  • SendingEmail alertsConfigurable by4-cloud portal
  • Viewable by multiple users with different access levels

Typical applications

  • Low-cost multi-plant monitoring for maintenance services
  • Monitoring of photovoltaic fields
  • Monitoring of unattended photovoltaic systems installed in remote areas

Compatible accessories

Product Backward Compatibility

IntellyModem 2.0 replaces the following codes:

  • IM-0E-ZRE
  • IM-G-0E-ZRE
  • IM-KIT
  • IM-G-KIT

Before purchasing a new device to replace an old one, pleasesend a support requestTo check all the installation features of the product.

Technical Features

General characteristics Device with GPRS transmission for remote control of photovoltaic system production
Radio Features GPRS: Quad Band 850/900/1800/1900 MHz; GPRS multi-slot class 12/10/8, GPRS mobile station class B; compatible with GSM class 4 (2W@850/900 MHz); Class 1 (1W @ 1800/1900 MHz)
Antenna External antenna on SMA screw connector for data transmission via GPRS – L = 150 cm
Diet Double power supply option: IN1 > 5-12 Vdc; 1 A; IN 2 >230 Vac (±10%) 0.2 A 50 Hz
Status Views 4 LEDs for operating diagnostics
Sampling time Sampling frequency 15 min
Data transmission Data transmission every 60 min; alarm contact closure reporting (mail); transmission failure reporting (mail)
Internal memory Data history saving up to 15 days with sampling every 15 minutes in case of GPRS connection failure
Measures Active power produced; active energy produced
Connections SIM card slot accessible on the front of the device
Screw terminals for power supply
Screw terminals for S0 signal input and alarm input
USB 2.0 Type B connector for interfacing with PC
Assembly DIN rail
Entrances 1 alarm input for clean contact NO
1 S0 counting input, compatible with OPT1-S and OPT2-S optical interfaces
Environmental parameters Conditions of use: 0 ÷ +40°C; Storage conditions: -20 ÷ +70°C;
Degree of protection IP20
Insulation Class II
Certifications EMC: ETSI EN 301 489-17 v3.2.0 ;ETSI EN 301 489-1 v2.2.0 ;EN 61000-6-3:2007 + A1:2011 + AC:2012 ; EN 61000-6-2:2005 + AC:2005
Radio: ETSI EN 300 328 v2.1.1
Exposure to electromagnetic fields: EN 62479:2010
Safety: EN 62368-1:2014; EN 62368-1:2014/AC:2015
Dimensions (L x H x D) DIN rail container 4 modules 71 x 110 x 60 mm
Weight 205 g
