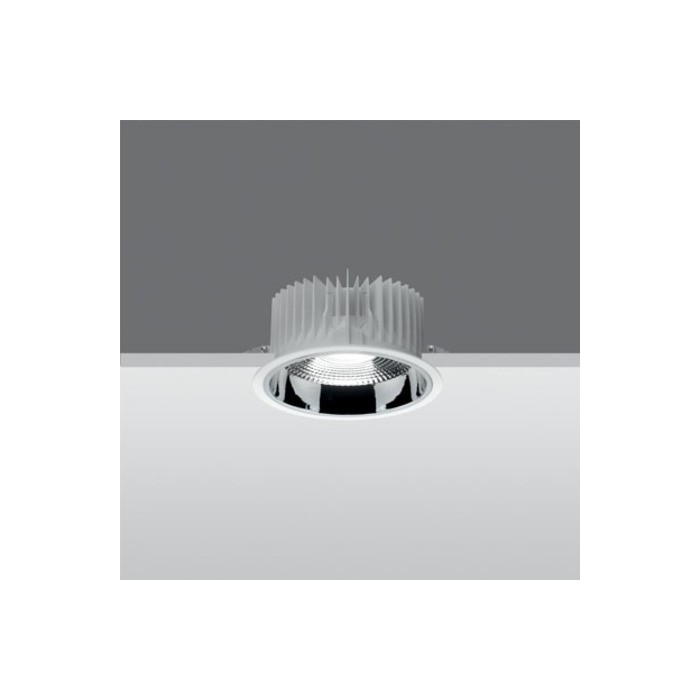

Round recessed - D=226 mm H=103 mm - warm white LED - electronic power supply - general light optics with controlled luminance UGR

Product information

  • Material: Die-cast aluminum

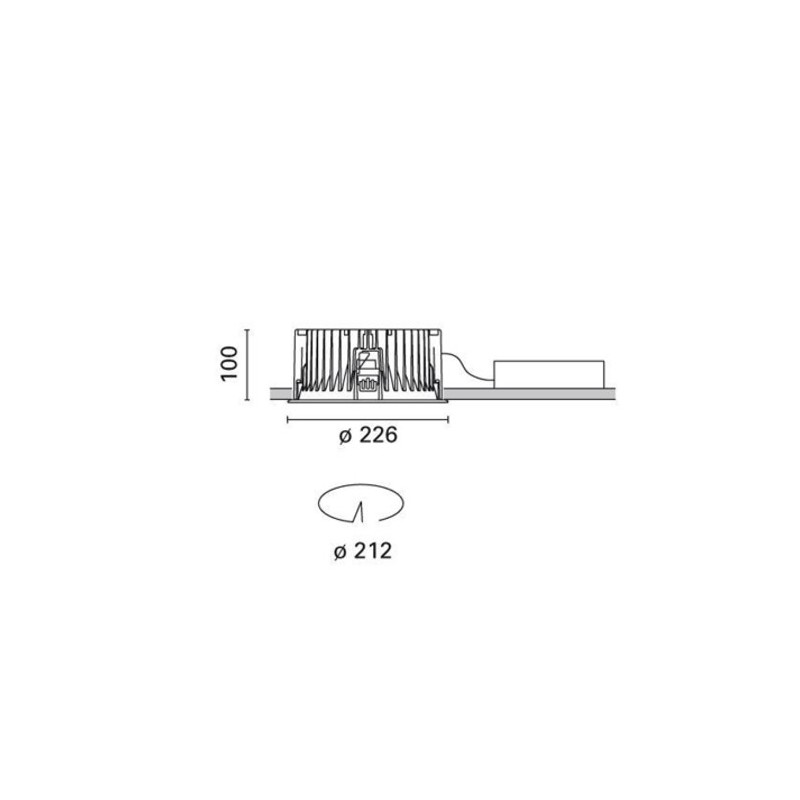

  • Dimensions (mm): ø226x100, Weight (kg): 1,75

Available colors

  • 144_26_color__0018_39-bianco_alluminio 39White/Aluminum

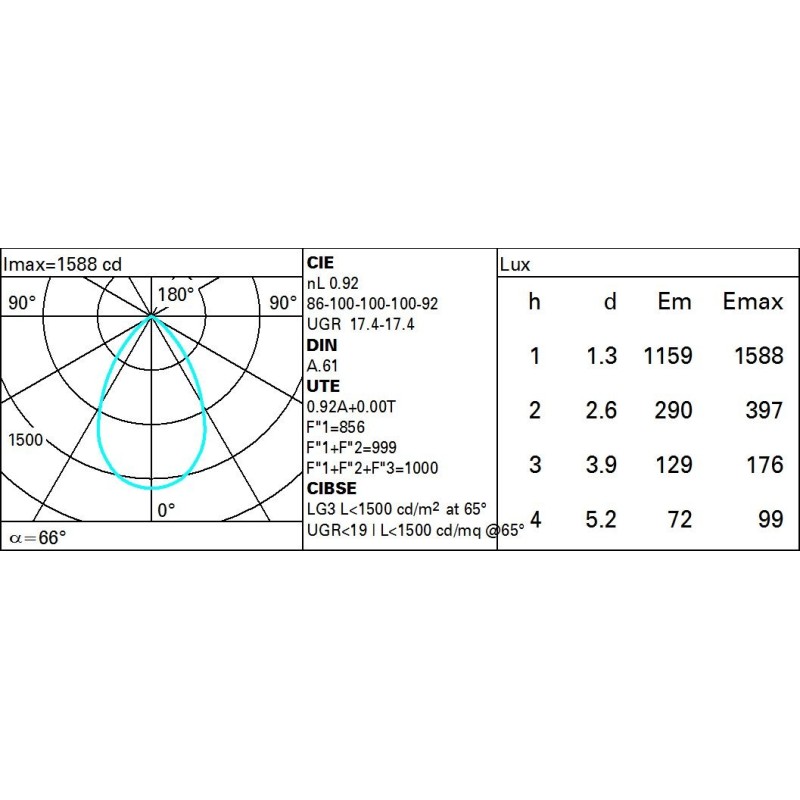

Lighting parameters

  • LED
  • 18W 2000lm - light source values
  • 21W 1839lm - system values the
  • Luminous efficacy (system value): 87lm/W
  • 3000K CRI 80
  • Optics: UGR - UGR controlled luminance
  • Orientability: Fixed
  • Emission of lm in emergency mode: -
  • Total flow emitted at 90° or greater [Lm]: 0
  • Light Output Ratio (L.O.R.) [%]: 92
  • Life Time 1: 50,000h - L80 - B10 (Ta 25°C)

Electrical parameters

  • Electronic group included
  • No. of optical compartments: 1

Technical specifications

  • 144_3_classe2
  • 144_86_ip20_
  • 144_88_ip23_On the visible product
    after installation
  • 144_2_CE
  • 144_13_ENEC03
  • QCERT-logo
  • iram-1

Installation information

  • Installation: Recessed using torsion springs that allow easy installation on false ceilings with thicknesses starting from 1 mm up to 25 mm.
  • Usage environment: Indoor
  • Wiring: Product complete with electronic components
