iGuzzini 8933 Standard track 32x32 l.3000 in met.
iGuzzini BZN8 Outer casing h.140 acc.inox for mon-up

Incs.ledplus d.138 ottic.orien.c/3 led w

€272.19
Tax included
I GUZZINI
3.BB46.713.0
New
Out-of-Stock
Quantity
Add to Wishlist

This product can be bought with COD

Notify me when available
Home , Latest arrivals
  • Security policies
    Security policies
  • Shipping Policies
    Shipping Policies

large body with ±10° adjustable optics - 4.7W 104.3lm - 3000K

Product information

  • Material: Aluminum

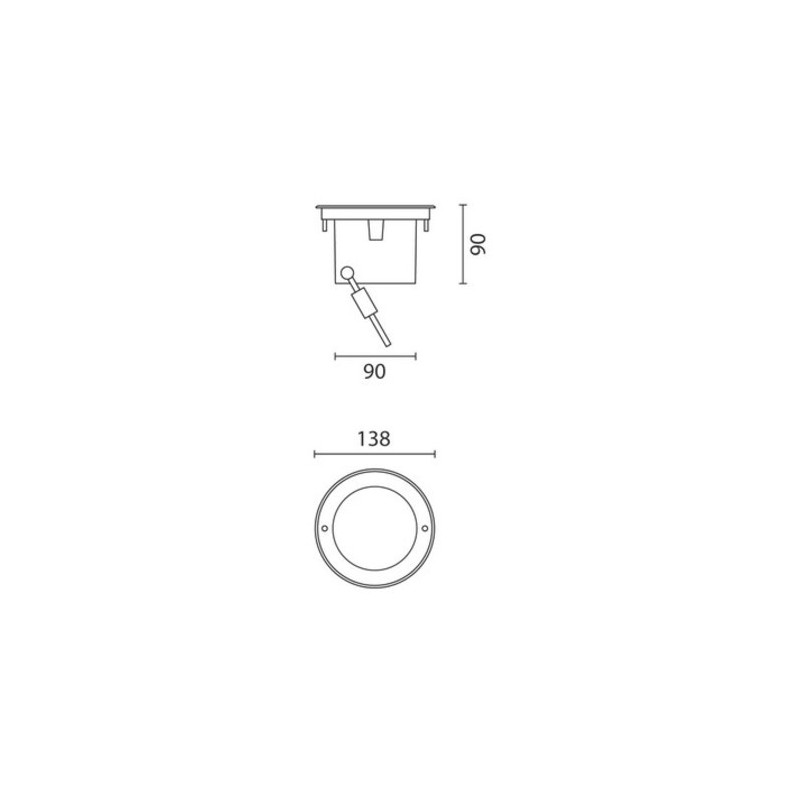

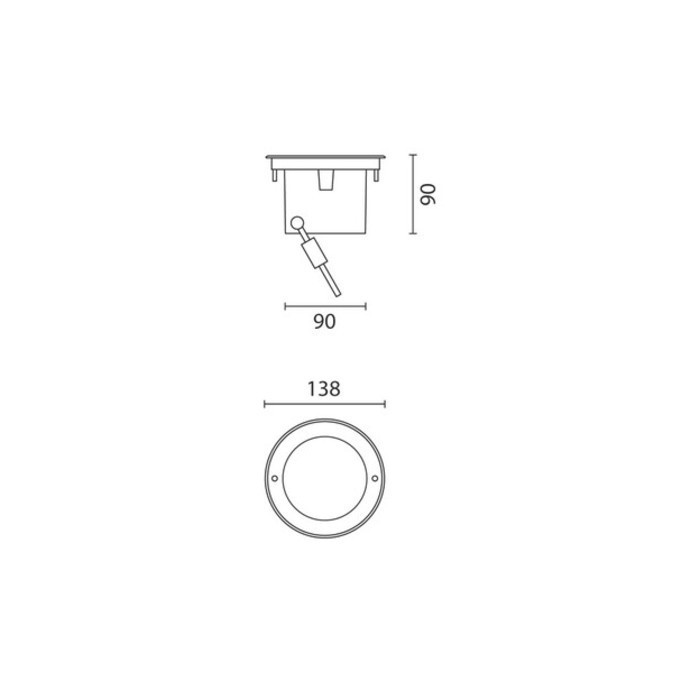

  • Dimensions (mm): ø138x90

Available colors

  • 144_13_16_acciaio 13 Steel

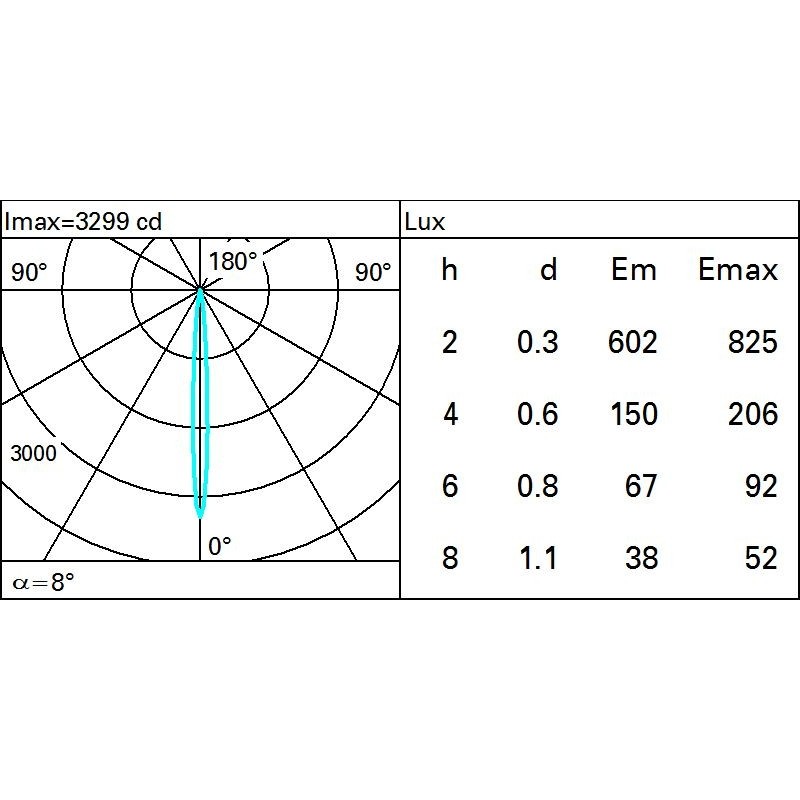

Lighting parameters

  • LED
  • 3W 240lm - light source values
  • 4.7W 104lm - system values i
  • Luminous efficacy (system value): 22lm/W
  • 3000K CRI 80
  • Optics: SS - SuperSpot 8°
  • Orientability: Directional
  • Emission of lm in emergency mode: -
  • Total flux emitted at 90° or greater [Lm] : 0
  • Light Output Ratio ( LOR ) [%] : 43
  • Life Time 1: 66,000h - L80 - B10 (Ta 25°C)

Electrical parameters

  • Electronic transformer included
  • Power supply losses [W] : 1.7
  • No. of optical compartments: 1
  • Operating ambient temperature range: -20°C to +35°C.

Technical specifications

  • 144_3_classe2
  • 144_83_ik10
  • 144_99_ip67_
  • 144_72_glow_wire_960

Installation information

  • Installation: Recessed application using a casing for installation, which can be ordered separately. The casing is available in the 100mm version in painted cast aluminium and complete with closing cap (wall or ground installation), or in the 150mm version in plastic material (garden installation).
  • Usage environment: Indoor/Outdoor
