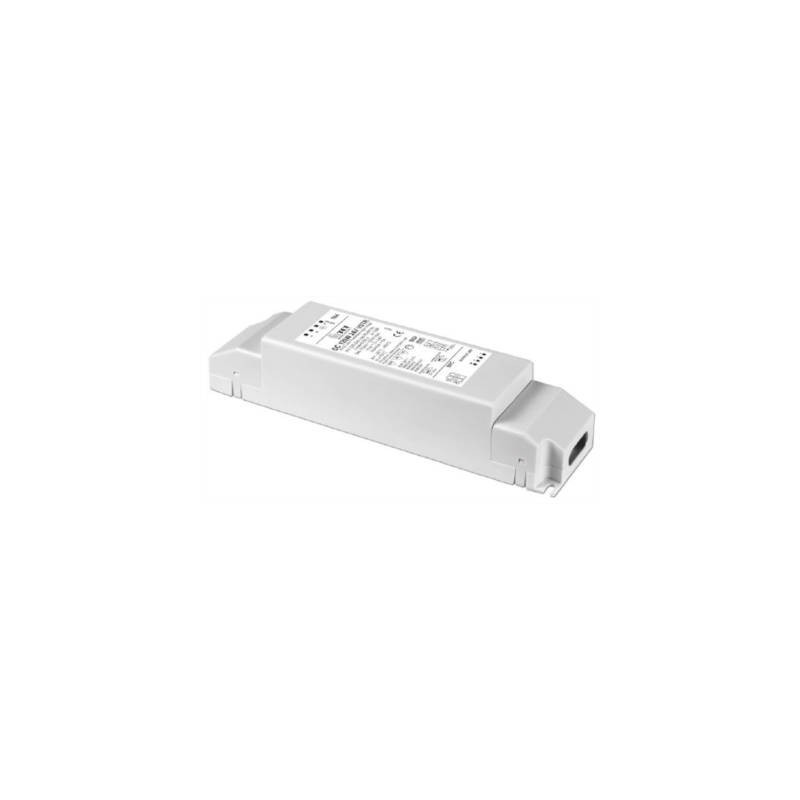

TCI DC 120W 24V VSTR DALI – Dimmable LED Power Supply DALI

The TCI DC 120W 24V VSTR DALI is a high quality dimmable LED power supply, designed to power constant voltage LED strips with precise lighting control. Thanks to its compatibility with the DALI protocol and its advanced technical features, it is ideal for architectural, residential and commercial lighting applications.

Main features:

• Rated voltage : 220-240V, suitable for standard power supply in Europe and UK.
• Constant Voltage for LED : 24V, perfect for constant voltage LED strips.
• Regulation :
  • DALI-1 : Compatible with the DALI protocol for lighting control, ensuring precise and flexible regulation of light intensity.
  • SYNC/PWM INPUT : Synchronization input for control via PWM (Pulse Width Modulation).
• Technical features :
  • Ripple Free : Ripple-free power supply for stable and flicker-free light, ideal for business or residential environments.
  • Active PFC (Power Factor Correction) : Power factor >0.9, which reduces energy consumption and improves power efficiency.
  • SELV (Safety Extra Low Voltage) : Guaranteed safety for use in sensitive environments.
  • Dimming : Adjustment of light intensity via PWM.

Approvals and Certifications:

• ENEC , RCM , CE , EAC , UKCA : Compliant with the main European and international safety and quality standards and certifications, ensuring safe and reliable use.

Design and Installation:

• Enclosure : Square shaped plastic, designed for freestanding use.
• Degree of protection : IP20, suitable for indoor use.
• Dimensions : 240 x 50 x 60 mm
• Minimum installation hole : Minimum diameter of 80mm for easy installation.

Advantages of TCI DC 120W 24V VSTR DALI:

• Lighting control : Light intensity regulation via DALI protocol and PWM input, for customized and optimized lighting.
• Energy efficiency : With Active PFC and high conversion efficiency, it helps reduce energy consumption and operating costs.
• Ease of installation : Compact design with minimal installation hole, ideal for integration into various architectural contexts.
• Compatibility and safety : Complies with all major safety and quality standards, ensuring reliable operation over time.

Applications:

• Power and control of LED strips for residential, commercial and architectural use.
• Ideal for applications in environments where precise and safe lighting regulation is required, such as offices, showrooms, hotels and luxury residences.

The TCI DC 120W 24V VSTR DALI is the perfect solution for those looking for a versatile, efficient and dimmable LED power supply for optimal lighting control, ensuring quality, safety and ease of use.
