Miniwoody w/baset.e warm white led w/lens
Power supply led 20w elet.110-240vac 12v dc12vef

iGuzzini MQ55 Frame Recessed Integrated electronic power supply - Diffused light optics - 12W 570.2lm - 4000K

€113.94
Tax included
I GUZZINI
3.MQ55.747.0
New
8 Items
Quantity
Add to Wishlist

This product can be bought with COD
Lightning , Latest arrivals
White , Laser INC , LED Blades , Neutral Light , Framing
  • Security policies
    Security policies
  • Shipping Policies
    Shipping Policies

Frame Recessed - LED - Neutral White - Integrated electronic power supply - Diffused light optics - 12W 570.2lm - 4000K - CRI 95

Product information

  • Material: Die-cast aluminum

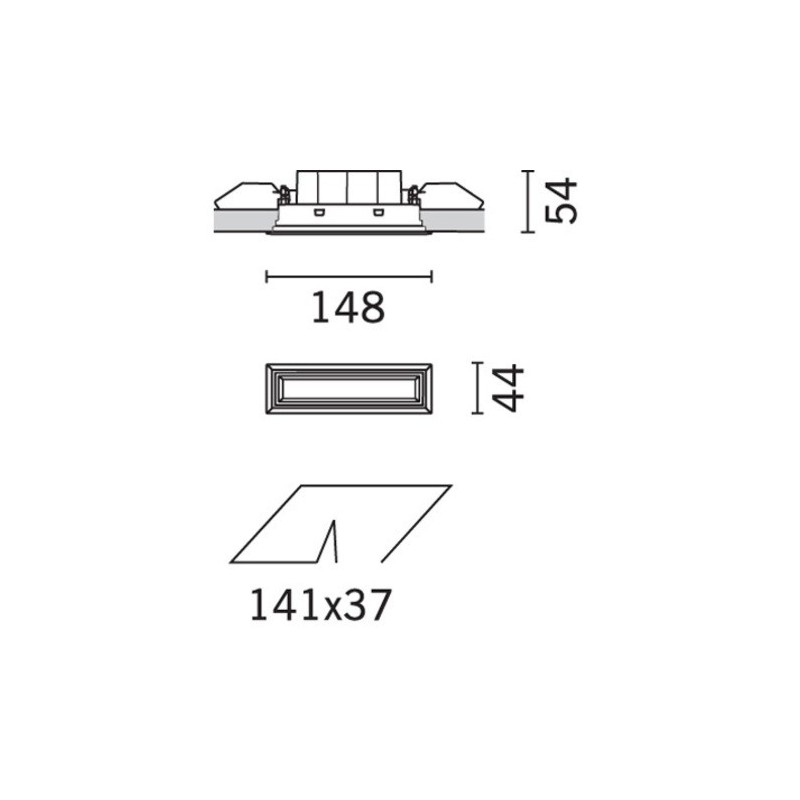

  • Dimensions (mm): 148x44x54, Weight (kg): 0.35

Lighting parameters

  • LED
  • 10W 1000lm - light source values
  • 12W 570lm - system values i
  • Luminous efficacy (system value): 47lm/W
  • 4000K CRI 95
  • Optics: GL - General light
  • Orientability: Fixed
  • Emission of lm in emergency mode: -
  • Total flux emitted at 90° or greater [Lm] : 0
  • Light Output Ratio ( LOR ) [%] : 57
  • Life Time 1: 50,000h - L90 - B10 (Ta 25°C)

Electrical parameters

  • Electronic group included
  • No. of optical compartments: 1

Technical specifications

  • 144_3_classe2
  • 144_86_ip20_
  • 144_92_ip43_ On the visible product
    after installation
  • 144_2_CE
  • ukca-logo
  • 144_13_ENEC03
  • bis-india
  • QCERT-logo
  • 144_38_EAC_icona
  • 144_39_NOM-FS
  • iram-1

Installation information

  • Installation: recessed with steel wire springs for false ceilings from 1 to 25 mm; possibility of ceiling and wall installation (vertical + horizontal) - preparation slot 37 x 141
  • Usage environment: Indoor
  • Wiring: on power box: screw connections
IGZ3.MQ55.747.0
